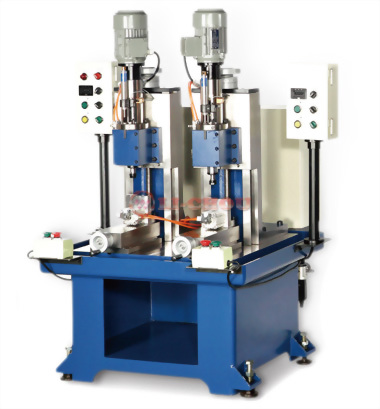

2D Drilling & Tapping Machine-LC-180S-2D

Model : LC-180S-2D
Standard accessories:

1.Tool box
2.Hydraulic vise 1 set
3.Central lubrication system
4.Slideway guard
5.Operation manual

Optional accessories:

1.Motor frequency converter (adjust spindle speed)

Working example


Specifications\Model LC-180S-2D
Spindle Spindle speed RPM surely may supplement the motor frequency changer according to the client demand, but changes the speed.
Main spindle milling shank ER20
Travel Z axis travel length 180 mm
Y axis travel (longltudunal) 0-50 mm
Z axis center height (slide table surface to main spindle center) 200mm
Work table Size 125 x 300 mm (Can Change)
Weight load 100 Kgs
Feed Size 6000 mm/min
Cutting speed 1-5000 mm/min
Motor Spindle motor 1 HP x 2PC
Hydraulic pump Pneumatic
Machine size Dimension L x W x H 1000 x 1000 x 1500 mm
Machine weight Kgs 800 kgs
