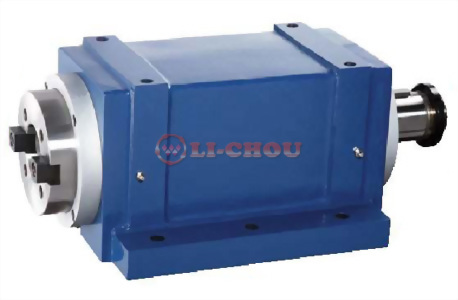

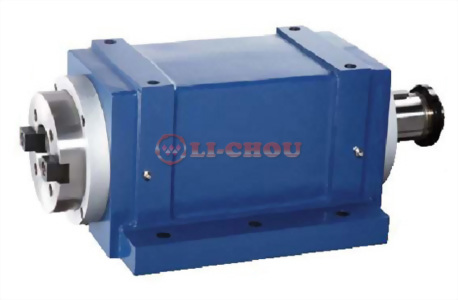

Milling Main Spindle Head
Model :
SH30I/SH40I
SH30I / SH40I
A. Equipped with taper roller bearing for precision working.
B. Spindle accuracy 0.005MM.
Unit：mm
| Model | Taper |
Max. RPM |
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SH30I |
MT3/ NT30 |
3000 | 77 | Ø69.832 | Ø54 | 4-M10xP1.5 | 160 | 140 | 6-Ø11 | 133 | 176 | 200 | 74 | 317 | Ø30 | 20 | 16×5.5 | 26kg |
| SH30I |
MT3/ NT30 |
9000 | 77 | Ø69.832 | Ø54 | 4-M10xP1.5 | 160 | 140 | 6-Ø11 | 133 | 176 | 200 | 74 | 317 | Ø30 | 20 | 16×5.5 | 26kg |
| SH40I | NT40 | 2500 | 77 | Ø88.882 | Ø66.7 | 4-M12xP1.75 | 180 | 170 | 6-Ø11 | 147 | 200 | 220 | 100 | 367 | Ø35 | 20 | 16×5.5 | 36kg |
| SH40I | NT40 | 8000 | 77 | Ø88.882 | Ø66.7 | 4-M12xP1.75 | 180 | 170 | 6-Ø11 | 147 | 200 | 220 | 100 | 367 | Ø35 | 20 | 16×5.5 | 36kg |
