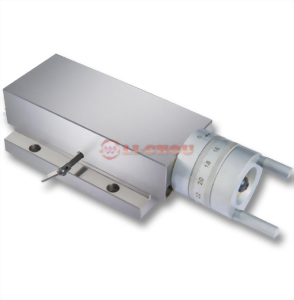

One Way Angle Thread Slide Table-ST-75/100/125

Model：ST-75/100/125

Q'ty

ST-75 / ST-100 / ST-125
A. Material: over FC-30.
B. Precision: 0.01MM(300L)

Unit：mm

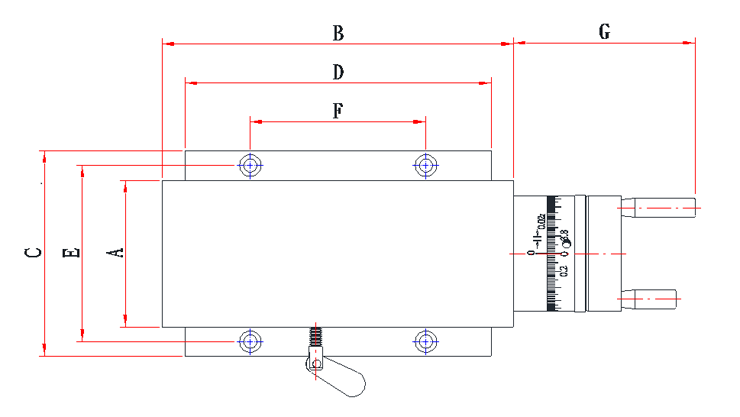

Model	A x B Table surface	C x D Base area	Hole		G	Stroke	Total height	Dial graduation(mm)	Weight (kg)
Model	A x B Table surface	C x D Base area	E	F	G	Stroke	Total height	Dial graduation(mm)	Weight (kg)
ST-75	75 x 180	105 x 157	90	90	95	75	60	2.5 / 0.02	7.5
ST-100	100 x 235	140 x 160	120	120	95	100	70	2.5 / 0.02	12
ST-125	125 x 300	165 x 255	145	100 x 2	119	125	80	4.0 / 0.02	22
