Precision Cross Worktable-SCT-150/SCT-200/SCT-250/SCT-250A
Model :
SCT-150/SCT-200/SCT-250/SCT-250A
SCT-150 / SCT-200 / SCT-250 / SCT-250A
- Material : over FC-30.
- Precision: //∟0.015MM(300L).
- Feature : The sliding surfaces are treated by Heat-treatment & precision grind.
* Optional accessories : T slot nuts.
Unit：mm

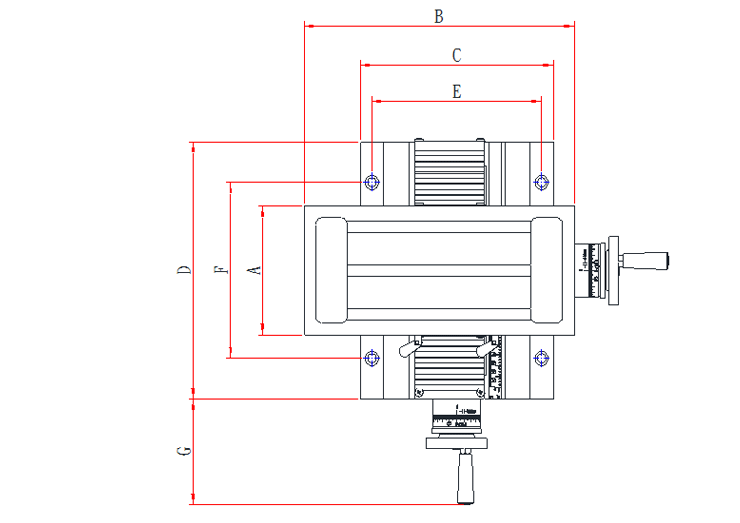

| Model | A | B | C | D | E | F | G | Height | Stroke | T slot nuts |
Dial graduation (mm) |
孔径 |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCT-150 | 150 | 350 | 250 | 300 | 220 | 205 | 119 | 135 | 150x175 | 3/8" | 4 / 0.02 | 沉Ø17 x Ø11 | 38/48 |
| SCT-200 | 200 | 500 | 300 | 400 | 250 | 290 | 150 | 155 | 200x300 | 3/8" | 4 / 0.02 | 沉Ø19 x Ø13 | 72/83 |
| SCT-250 | 250 | 600 | 400 | 500 | 340 | 430 | 175 | 210 | 250x350 | 1/2" | 4 / 0.02 | 沉Ø19 x Ø13 | 133/145 |
| SCT-250A | 250 | 800 | 400 | 500 | 340 | 430 | 175 | 210 | 250x550 | 1/2" | 4 / 0.02 | 沉Ø19 x Ø13 | 139/156 |
