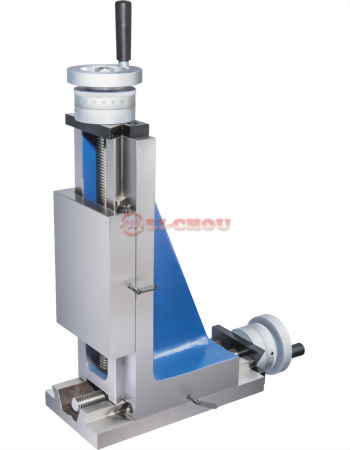

Vertical Dovetail Slide Table (Straight)-STDS
Model :
STDS
STDS-100 / STDS-150
- Material:over FC-30
- Precision://∟0.015MM(300L)
- Feature :The sliding surfaces are precision grind.

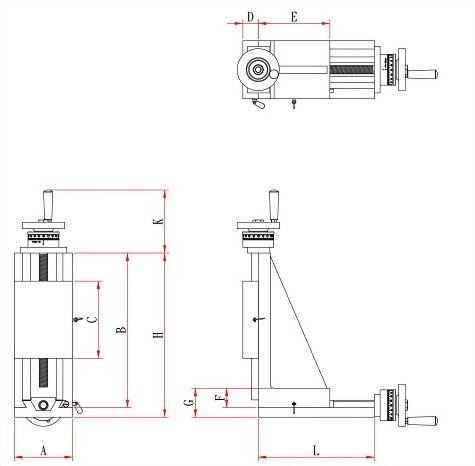

Unit：mm
| Model | A | B | C | D | E | F | G | H | K | L | Roller & Dial graduation | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STDS-100 | 100 | 270 | 150 | 35 | 130 | 45 | 65 | 290 | 117.5 | 300↑ | Ø19 × 4 mm / 0.02 mm | 23 |
| STDS-150 | 150 | 400 | 200 | 40 | 185 | 50 | 75 | 425 | 166.5 | 300↑ | Ø22 × 4 mm / 0.02 mm | 46 |
