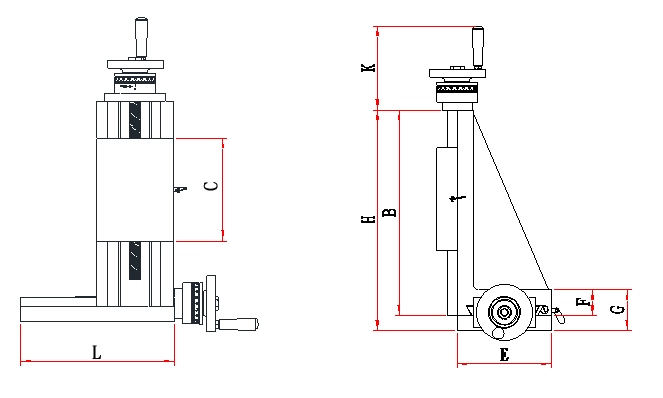

Vertical Dovetail Slide Table (Crosswise)
Model :
STDC
STDC-100 / STDC-150
A.Material:over FC-30
B.Precision://∟0.015MM(300L)
A.Material:over FC-30
B.Precision://∟0.015MM(300L)
C.Feature :The sliding surfaces are precision grind.
Unit：mm
| Model | A | B | C | D | E | F | G | H | K | L | Roller & Dial graduation | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STDC-100 | 100 | 270 | 150 | 35 | 125 | 45 | 65 | 290 | 117.5 | 300↑ | Ø19 × 4 mm / 0.02 mm | 25 |
| STDC-150 | 150 | 400 | 200 | 40 | 185 | 50 | 80 | 430 | 166.5 | 300↑ | Ø22 × 4 mm / 0.02 mm | 51 |
