Heavy-Duty I-Form Strucure-STE-25

Model：STE-25

Q'ty

Sturdy construction allows for heavy-duty cutting.
High quality cast iron FC-30 which is heat treated and homogenized,
this strut designed for providing precision processing.
Hydraulic , Roller servo or Hand wheel.

Optional accessories：
Spindle head 、 Motor 、 Hand wheel.
* The Collet Chuck not include

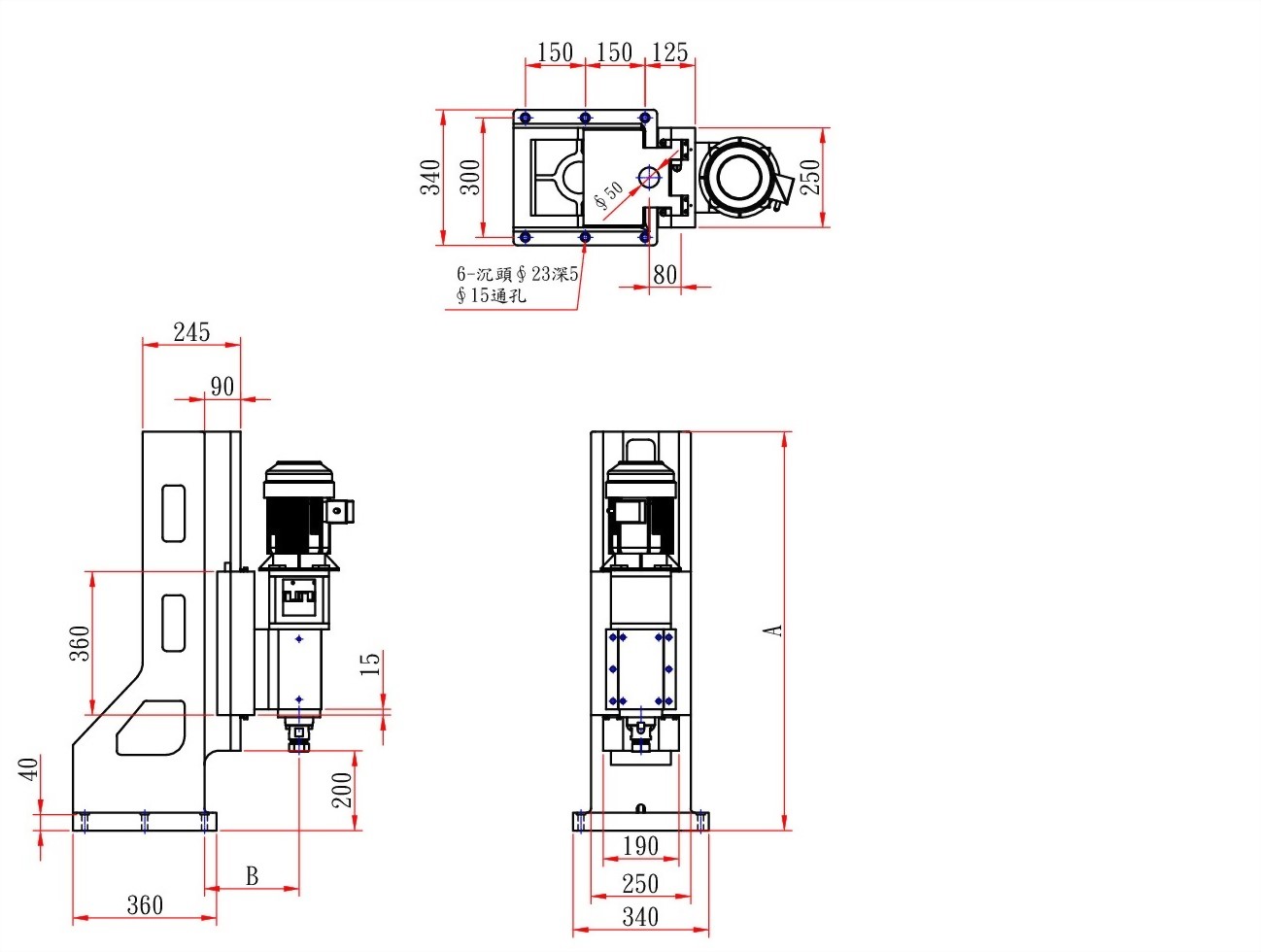

Unit：mm

Model	Spindle Head			Motor	A	B	Stroke(mm)	Max. Load (kg)	Hydraulic cylinder
Model	Drill	Tap	Spindle Head	Motor	A	B	Stroke(mm)	Max. Load (kg)	Hydraulic cylinder
STE-2570	FD8	F8N	SH30I-ER32 SH40I-ER40 SH40I 側固 Ø25	2HP	700	237	140	150	Ø63With rear buffer
STE-25100	FD8	F8N	SH30I-ER32 SH40I-ER40 SH40I 側固 Ø25	3HP	1000	202	440	150	Ø63With rear buffer

Model : STE-B

Model : STE-A

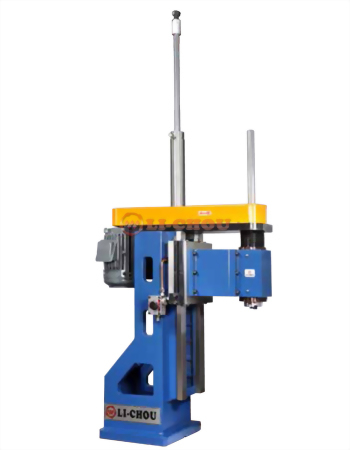

Model : STF-30
