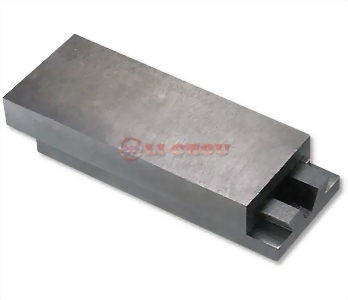

• Dovetail-Slide Table

Dovetail-Slide Table

Model : T-4"/5"/6"/8"/10"/12"
T-4"/5"/6"/8"/10"/12"
A.Material :over FC30
B.Precision:Grind 0.01MM(300L)
                        General 0.05MM

Unit:mm

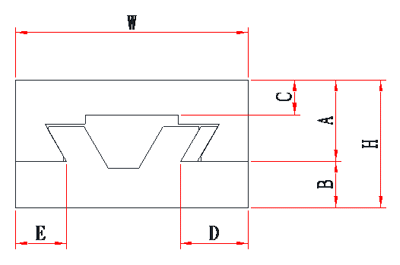

Model W L H A B C D E Weight
T-408 100 200 55 35 20 15 29 22 7
T-416 100 400 55 35 20 15 29 22 14
T-424 100 600 55 35 20 15 29 22 21
T-512 125 300 60 40 20 18 33 29 14
T-524 125 600 60 40 20 18 33 29 29
T-612 150 300 65 40 25 20 35 31 18
T-624 150 600 65 40 25 20 35 31 36
T-816 200 400 90 60 30 27 43 37 42
T-832 200 800 90 60 30 27 43 37 83
T-1020 250 500 95 60 35 27 40 34 67
T-1030 250 750 95 60 35 27 40 34 100.5
T-1040 250 1000 95 60 35 27 40 34 134
T-1060 250 1500 95 60 35 27 40 34 188
T-1220 300 500 95 60 35 27 40 34 95
T-1230 300 750 95 60 35 27 40 34 143
T-1240 300 1000 95 60 35 27 40 34 190
T-1260 300 1500 95 60 35 27 40 34 288
