One Way Angle Thread Slide Table
Model :
STA
STA-1630 / STA-1640 / STA-2030 / STA-2040
STA-2060 / STA-2080 / STA-20100
STA-2060 / STA-2080 / STA-20100
- Material: over FC-30.
- Precision: 0.01MM(300L)
-
Feature: The STA sliding surfaces are treated by Heat-treatment & precision grind.
Unit：mm

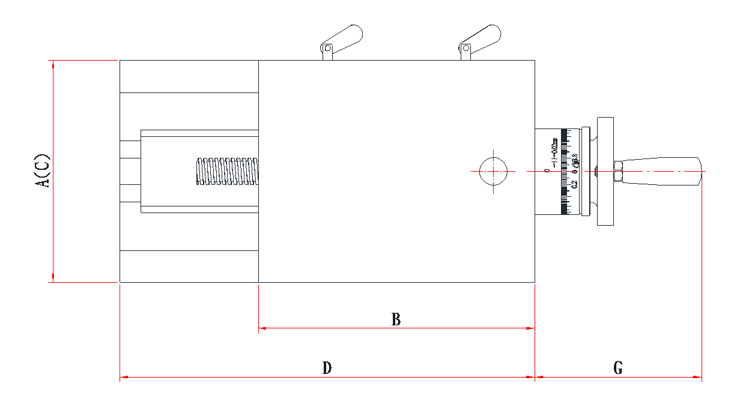

| Model |
A x B Table surface |
C x D Base area |
G | Stroke | Total height | Dial graduation(mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| STA-1630 | 160 x 200 | 160 x 300 | 119 | 100 | 90 | 4.0 / 0.02 | 21 |
| STA-1640 | 160 x 200 | 160 x 400 | 119 | 200 | 90 | 4.0 / 0.02 | 25 |
| STA-2030 | 200 x 300 | 200 x 300 | 150 | 50 | 120 | 4.0 / 0.02 | 38 |
| STA-2040 | 200 x 300 | 200 x 400 | 150 | 100 | 120 | 4.0 / 0.02 | 44 |
| STA-2060 | 200 x 300 | 200 x 600 | 150 | 300 | 120 | 4.0 / 0.02 | 52 |
| STA-2080 | 200 x 300 | 200 x 800 | 150 | 500 | 120 | 4.0 / 0.02 | 63 |
| STA-20100 | 200 x 300 | 200 x 1000 | 150 | 700 | 120 | 4.0 / 0.02 | 75 |
