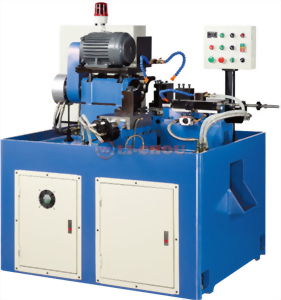

Horizontal drilling、chamfer cutting machine
Model :
LC-120S
Axis. Machinery. Washer. Part...etc

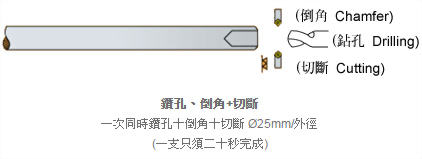

Function of the lathe on the desk, drilling chamfer cutting to hole one-way at the same time.
Optional auto feed device is available for manpower.
Function of the lathe on the desk, drilling chamfer cutting to hole one-way at the same time.
Optional auto feed device is available for manpower.
Working example
| Specifications＼Model | LC-120S | Standard accessories | |
|---|---|---|---|
| Spindle | Spindle speed (cut) |
2000RPM Extra motor frequency converter 500~2000RPM |
Tool Box Hydraulic vise 1 set Central lubrication system Cooling water system Level block & ground bolt Operation manual Motor frequency converter |
| Drilling R.P.M. |
2000RPM Extra motor frequency converter 500~2000RPM |
||
| Main spindle milling shank | SD45-15° collet | ||
| Drilling hole tilt | ER25 | ||
| Spindle nose bearing dia. | Ø 125mm | ||
| Travel | X axis travel cutting length | 120 mm | |
| Max. stock capacity | Ø30mm | Optional accessories | |
| Y axis travel (longitudinal) | 100 mm | ||
|
Z axis center height (slide table surface to main spindle center) |
30 mm |
ER25 collet chuck set Auto feed device Safely guard |
|
| Work table | Size | 200 x 300 mm | |
| T siat size | 250 kgs | ||
| Weight load | 420 kgs | ||
| Feed | size | 6500 mm/min | |
| Cutting speed | 1 ~ 6000 mm/min | ||
| Motor | Spindle motor | 5 HP/4P | |
| Hydraulic pump | 2 HP | ||
| Coolant motor | 1/2 HP | ||
| Machine size | Dimension LxWxH | 1600 x 1350 x 1700 mm | |
| Machine weight | Kgs | 1500 kgs | |
