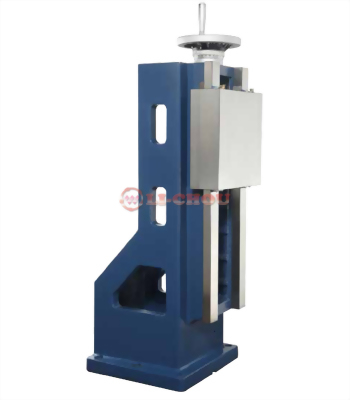

Heavy-Duty I-Form Strucure-STE-A
Model :
STE-A
- Sturdy construction allows for heavy-duty cutting.
-
High quality cast iron FC-30 which is heat treated and homogenized,
this strut designed for providing precision processing. - Hand-operated graduated wheel saves manpower.
Spindle head、motor

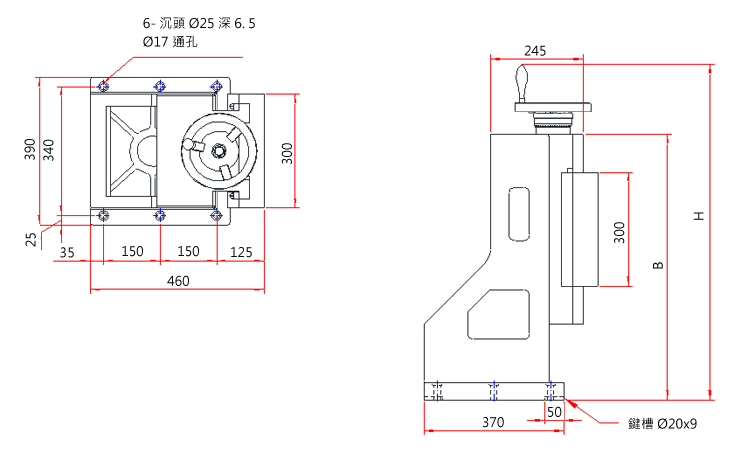

Unit：mm
| Model | Spindle Head | Motor | B | H | Stroke |
Max. Load (kg) |
Hydraulic cylinder | Hand-operated graduated wheel |
Weight (kg) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Drill | Tap | Spindle Head | |||||||||
| STE-3070A | FD8 | F8N | SH30I | 2HP | 700 | 872 | (none) 200 | 300 | Ø50 | 5mm/0.02 | 194/213 |
| SH40I | 3HP | ||||||||||
| SH50I | 5HP | ( Including accessories) 110 | |||||||||
| STE-30100A | FD8 | F8N | SH30I | 2HP | 1000 | 1172 | (none) 500 | 300 | Ø50 | 5mm/0.02 | |
| SH40I | 3HP | ||||||||||
| SH50I | 5HP | ( Including accessories) 340 | |||||||||
