Precision Cross Worktable-SCT-300
Model :
SCT-300
- Material : over FC-30.
- Precision: //∟0.015MM(300L).
- Feature : The sliding surfaces are treated by Heat-treatment & precision grind.
* Optional accessories : T slot nuts.
Unit：mm

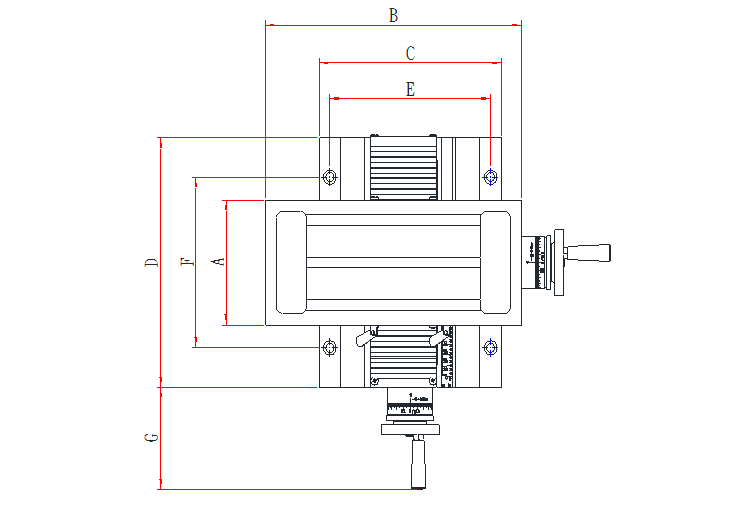

| Model | A | B | C | D | E | F | G | Height | Stroke | T slot nuts |
Dial graduation (mm) |
孔径 |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCT-300 | 300 | 710 | 360 | 600 | 310 | 350 | 175 | 160 | 300x410 | 平面 | 4 / 0.02 | 沉Ø20 x Ø13.5 | 150/165 |
