Heavy-Duty I-Form Strucure-STF-30
- Sturdy construction allows for heavy-duty cutting.
-
High quality cast iron FC-30 which is heat treated and homogenized,
this strut designed for providing precision processing. - Hydraulic cylinder with buffer design for stable movement.
- Heavy-Duty six angle trough transmission.
- Units featuring special specs can be custom-made.
Spindle head 、 Motor.
* The Collet Chuck not include.

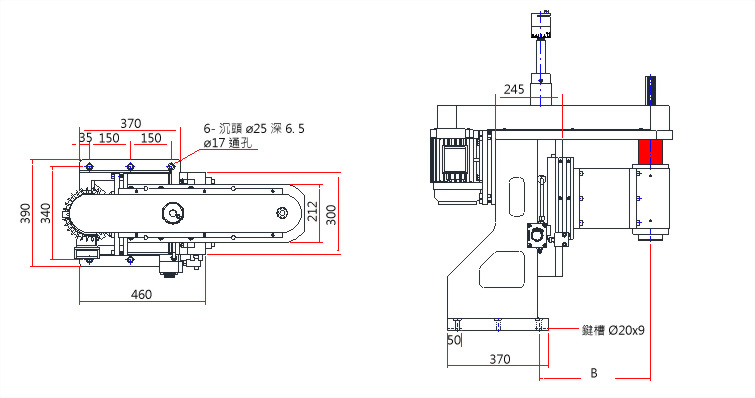

Unit：mm
| Model | Spindle Head | Motor | B | Stroke(mm) |
Max. Load (kg) |
Hydraulic cylinder | ||
|---|---|---|---|---|---|---|---|---|
| Drill | Tap | Spindle Head | ||||||
| STF-3070 | FD8 | F8N | SH40I | 3HP |
Length is designated by customer |
150 | 300 | Ø63 With rear buffer |
| STF-30100 | FD8 | F8N | 450 | 300 | ||||
