• Economic V Type Slide Table

Economic V Type Slide Table

Model : STB

STB-1630 / STB-1640 / STB-2030 / STB-2040 / STB-2060 / STB-2080 / STB-20100

  • Material:FC-30
  • Precision:0.01MM(300L)

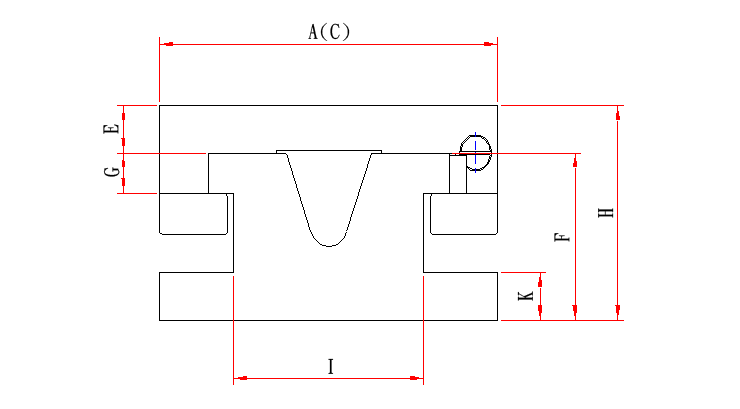

  • Feature:The sliding surfaces are treated by Heat-treatment & precision grind.stb-1.gif

Unit:mm

Model Table surface A x B Base area C x D E F G K I Height Stroke Weight(kg)
STB-1630 160 x 200 160 x 300 20 70 17 20 92 90 100 19
STB-1640 160 x 200 160 x 400 20 70 17 20 92 90 200 23
STB-2030 200 x 300 200 x 300 30 90 20 20 120 120 50 34
STB-2040 200 x 300 200 x 400 30 90 20 20 120 120 100 40
STB-2060 200 x 300 200 x 600 30 90 20 20 120 120 300 48
STB-2080 200 x 300 200 x 800 30 90 20 20 120 120 500 58
STB-20100 200 x 300 200 x 1000 30 90 20 20 120 120 700 69
