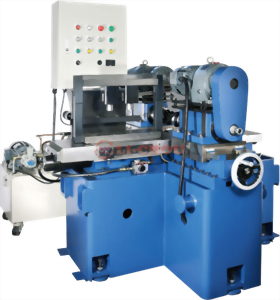

Bilateral 2-spindle, Auto Milling Machine

Model : LC-600LS

Performance

1.Change sizes esaily & quickly.

2.Special designed hydraulic vise available for any position, suitable for various sizes and shapes of workpieces.

3.Process bilateral milling, quickly & accurately.

4.Best choice for power & space saving.

5.Easy operation for even non-skillful staff.

ModelSpindle head LC-600LS
Spindle Spindle speed RPM surely may supplement the motor frequency changer according to the client demand, but changes the speed.
Main spindle milling shank NT50, BT50
Travel X axis travel length 50-600 mm
Y axis travel(longltudinal) 50-380 mm
Z axis center height (slide table surface to main spindle center) 115 mm
Work table Size 300×450 mm
Weight load 500 Kgs
Feed Size 6500 m/min
Cutting speed 1-6000 mm/min
Motor Spindle motor 7.5 HP×2PC
Hydraulic pump 2HP (3HP)
Machine size Dimension L×W×H 1800×1800×1800 mm
Machine weight Kgs 3000 Kgs
