Milling Main Spindle Head

Model : MT3/MT4

MT3 / MT4

A. Equipped with taper roller bearing for precision working.
B. Spindle accuracy 0.005MM。

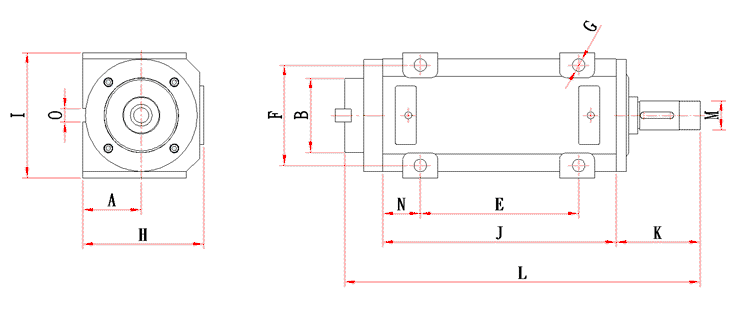

Unit:mm

Model Taper Max.RPM A B E F G H I J K L M N O Weight
MT3 MT3 7000 45 Ø42 80 70 4-Ø9 90 90 165 70 270 Ø25 42.5 16x5.5 9kg
MT3 MT3 12000 45 Ø42 80 70 4-Ø9 90 90 165 70 270 Ø25 42.5 16x5.5 9kg
MT4 MT4 2500 70 Ø88.882 190 120 4-Ø15 145 150 280 102 427 Ø35 45 16x5.5 37kg
MT4 MT4 8000 70 Ø88.882 190 120 4-Ø15 145 150 280 102 427 Ø35 45 16x5.5 37kg
