• Dovetail-Slide Table-T-2

Dovetail-Slide Table-T-2"/3"/4"

T-2" / T-3" / T-4"
A.Material ：over FC30
B.Precision：Grind 0.01MM(300L)
                        General 0.05MM

Unit：mm

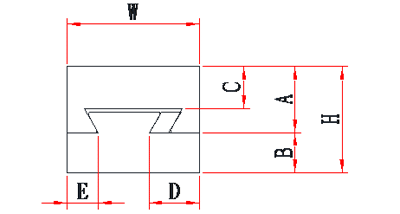

Model W L H A B C D E Weight
T-204 50 100 40 25 15 16 19 12 1.5
T-208 50 200 40 25 15 16 19 12 3
T-212 50 300 40 25 15 16 19 12 4.5
T-216 50 400 40 25 15 16 19 12 6
T-220 50 500 40 25 15 16 19 12 7.5
T-306 75 150 45 28 17 17 24 17 3.5
T-312 75 300 45 28 17 17 24 17 7
T-318 75 450 45 28 17 17 24 17 10.5
T-324 75 600 45 28 17 17 24 17 14
T-408 100 200 55 35 20 15 29 22 7
T-416 100 400 55 35 20 15 29 22 14
T-424 100 600 55 35 20 15 29 22 21

Related Products

Vertical Dovetail Slide Table-STD
Detail

Vertical Dovetail Slide Table-STD

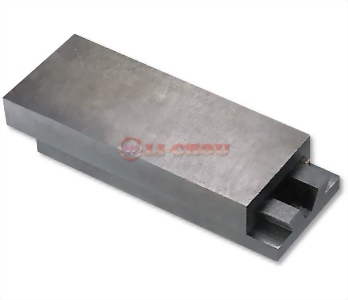

Dovetail-Slide Table-T-4"/5"/6"/8"/10"/12"
